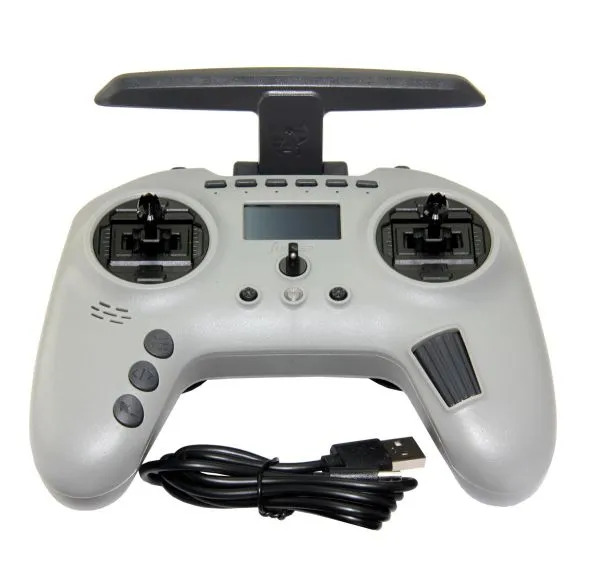

A small but fine multiprotocol transmitter with JP4in1 module.The Jumper T-Pro has six proportional channels, two 3-position switches, two 2-position switches, two push-buttons and six radio buttons. Thanks to the Edge-Tx system, the system can be configured very freely in large parts and adapted to the respective requirements.In DSM2 and DSMX protocol, the transmitter has up to 12 channels and is therefore also perfectly suited for function model building. In addition, the system also has FRsky (16 channels), FlySky and many other protocols.The system also has wear-free Hall sensors on the joysticks, vibration alarm and voice output.2 LI-ION batteries type 18650 are required to operate the system. The micro SD card recommended for operation and a USB-C cable for charging and updates are already included.The system can be configured via a scroll button and 3 menu navigation buttons. Somewhat more conveniently, all settings can also be made via the freely available Edge-TX Companion software. TECHNICAL DATA:- Width / height / depth: 160 x 128 x 68 mm- Weight without battery: 288 g- Voltage range: 6 - 8.4 V- Power supply: 2x Li-ION 18650 (not included)- Firmware: EdgeTX- Display: 1.3 inch 128x64 pixel- Joystick: Gimbals with Hall sensors- Micro SD slot: Micro SD (included)- Interfaces: 3.5 mm PPM simulator jack- USB-C socket for charging and updating
DATA SHEET
